Loom Maintenance

It's a clear, sunny day in the northwoods, a fair amount of light coming into my (log) studio space, making it a good day for some loom maintenance.

I sat down to weave on the rug late yesterday afternoon and could not get a clear tabby shed with my left tabby treadle. I finally discovered some Texsolv heddles had fallen off the bottoms of some shafts, and when that happens they often catch on moving neighboring shafts, causing problems. I recalled having to move heddles from one shaft to another, and now noticed I had not replaced the long strings going around the bottom shaft bars.

This morning, I sat down, put all the heddles back on each shaft, making sure none were twisted. Then, one shaft at a time, replaced those strings, going around the bottom of each shaft bar, outside of the heddles, and making sure I had not included the long Texsolv cords from jacks to lamms.

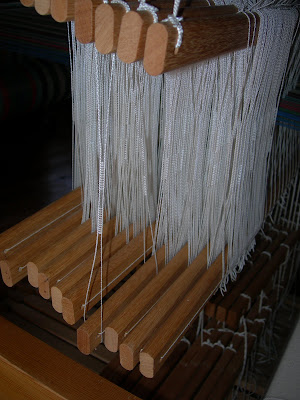

As you can see in the photo, the Texsolv cords on the top shafts bars keep heddles from working their way off the ends. Adding a string around the bottom shafts bars keeps heddles from dropping off and causing problems while weaving. I highly recommend this, and based on my experience today, can tell you it is much easier to do before your loom is warped, beater is on, and weaving is in progress. I learned this tip long ago from Ken Colwell.

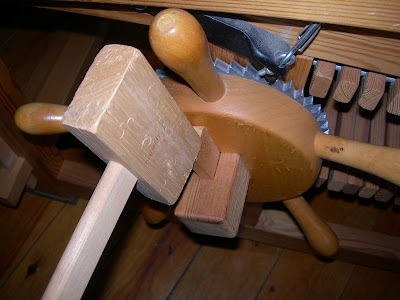

As long as I'm doing loom maintenance, I'm also checking the wedges that hold the loom together and tightening up any that can be pulled out or feel loose. With the woodburner being used daily, the air in here is getting dry. When that happens, beating can cause damage when loom parts are not tight. This is something I check throughout the winter months. Reminder to self: add a huge pot of water to the top of the woodburner for the rest of the winter.

I've checked the tabby sheds and they are clear. Now I just need to move my loom back into place, and sit down to weave. Life is good.

1 comment:

Life Looms Large said...

I just malleted my loom too - although I'm secretly envious of looms with their own dedicated wooden mallets. I had to use one out of our basement workshop....not quite as nice!

Thanks for the tip about the string around the bottom heddles on a countermarche loom. I need all the tips I can get about my loom. Right now I have only a small number of heddles toward the center of what seem like wide shafts, but hopefully some day I'll start weaving wider and need this tip!!

Sue
